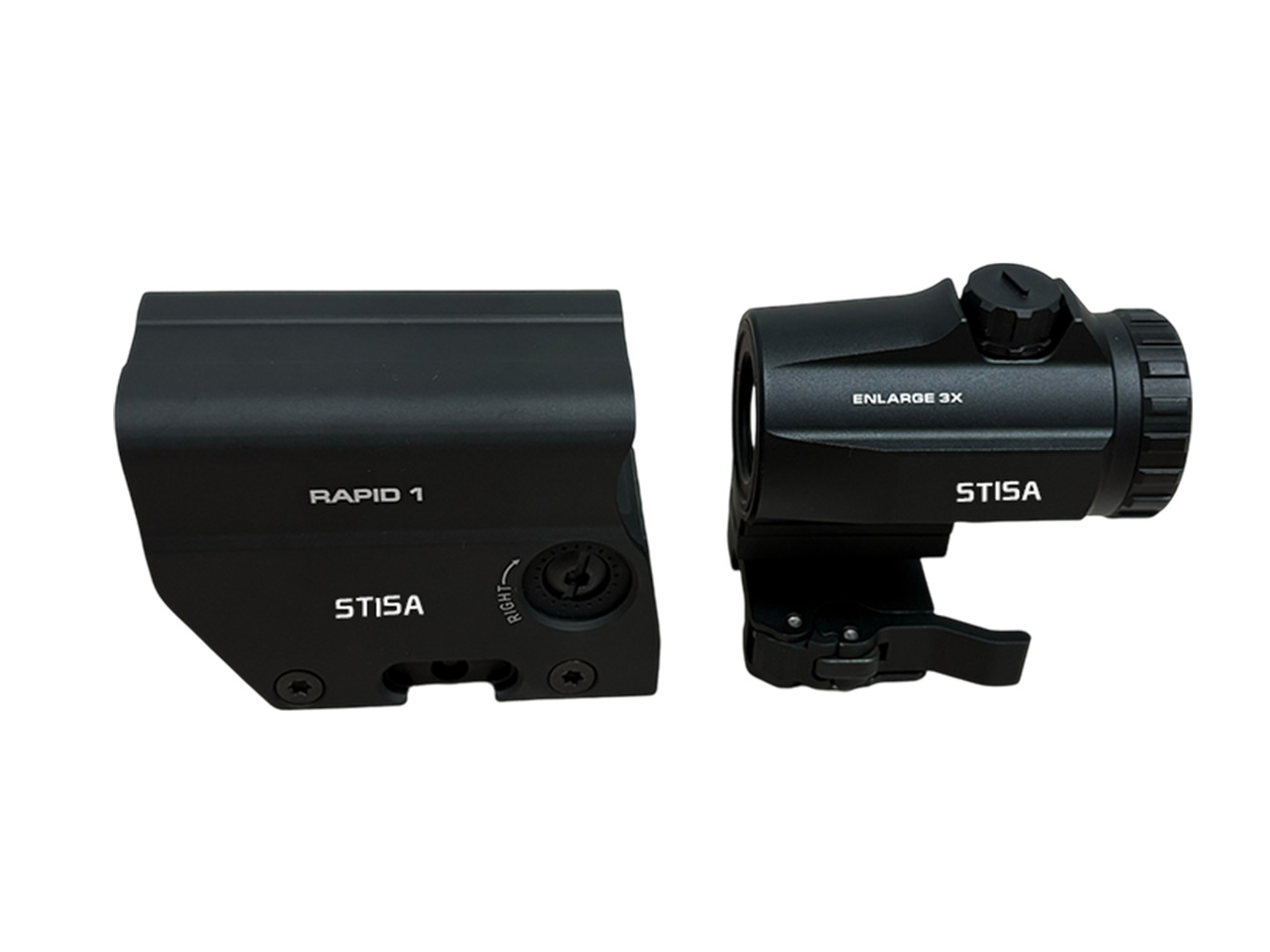

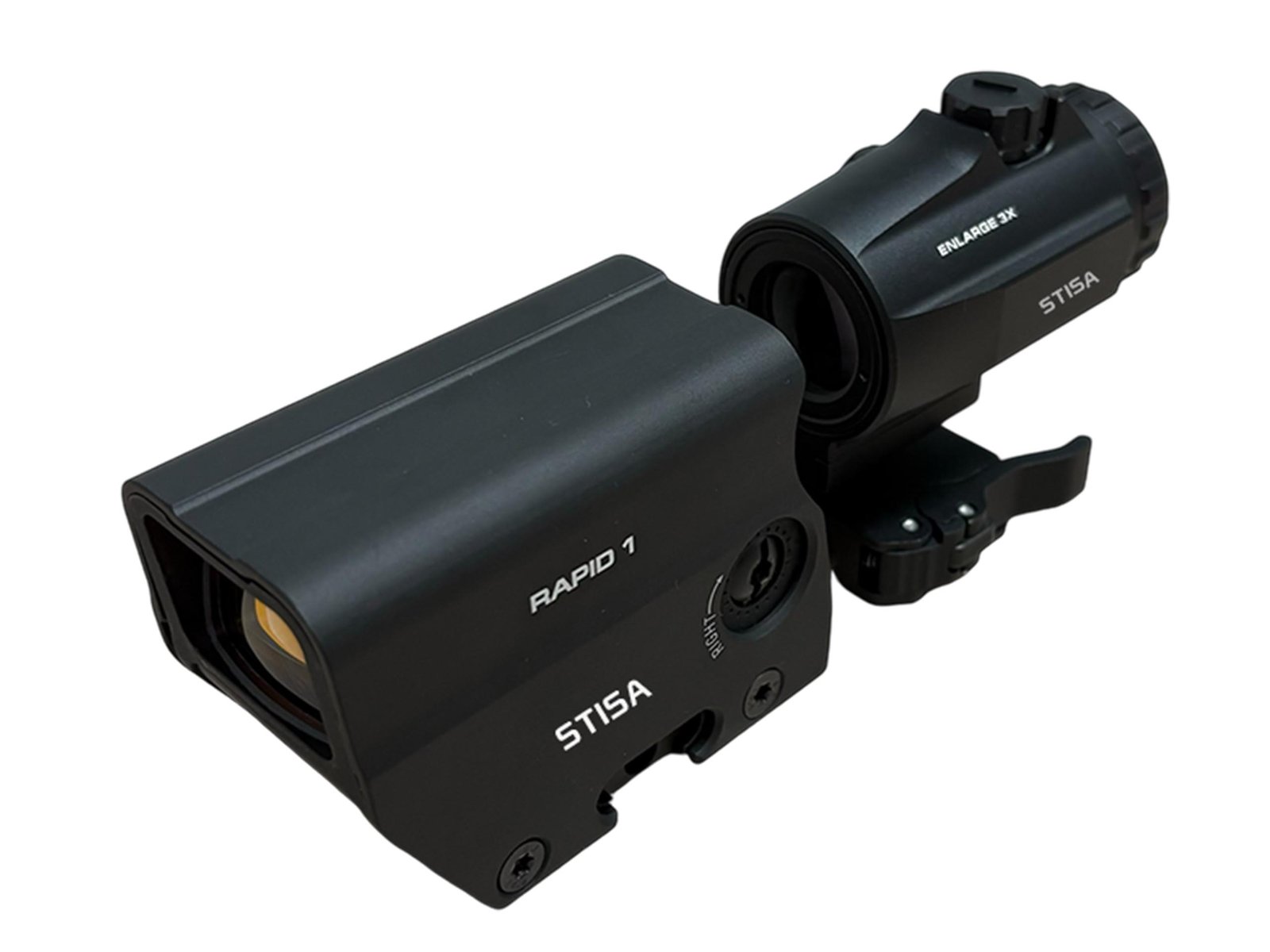

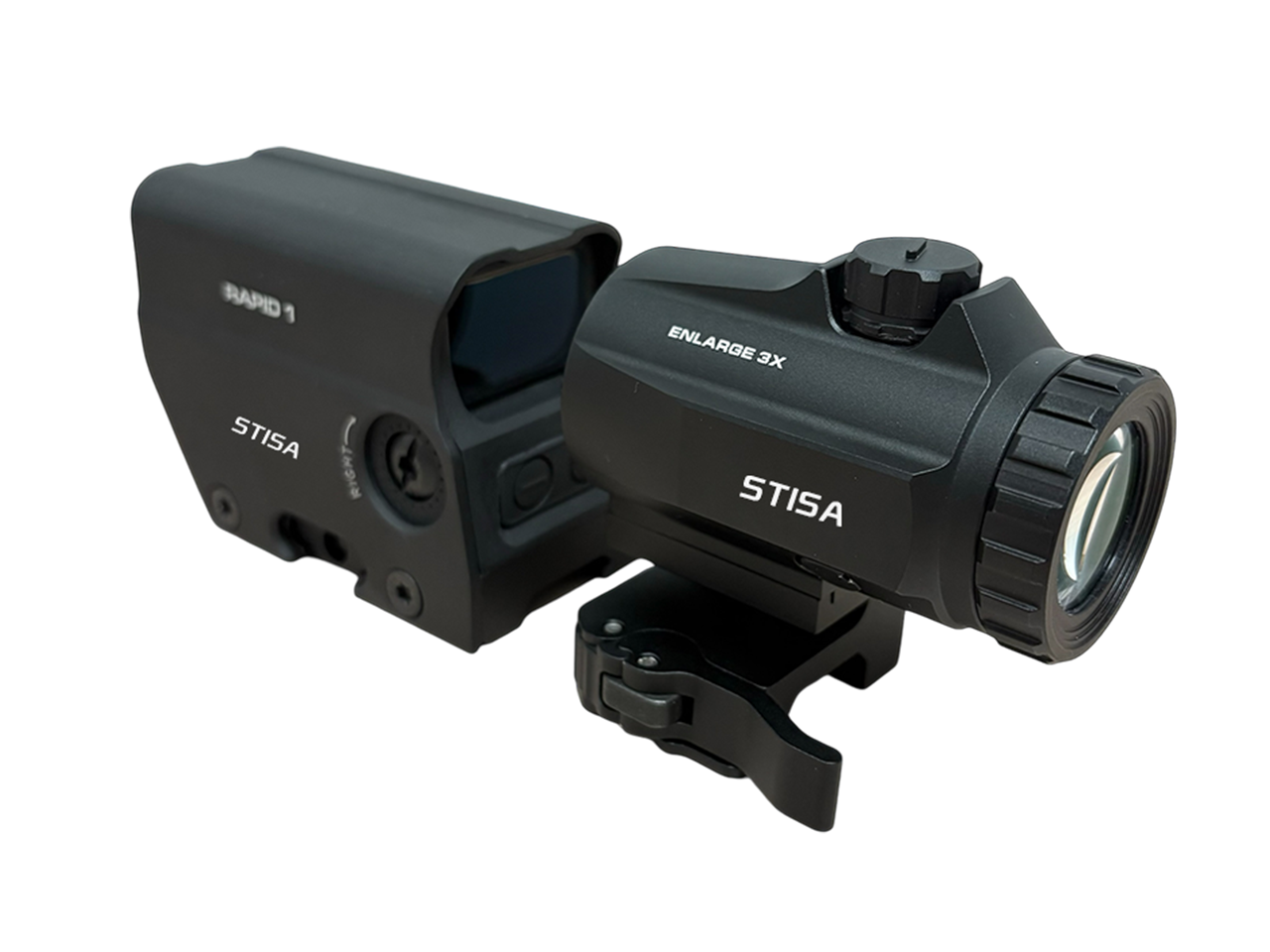

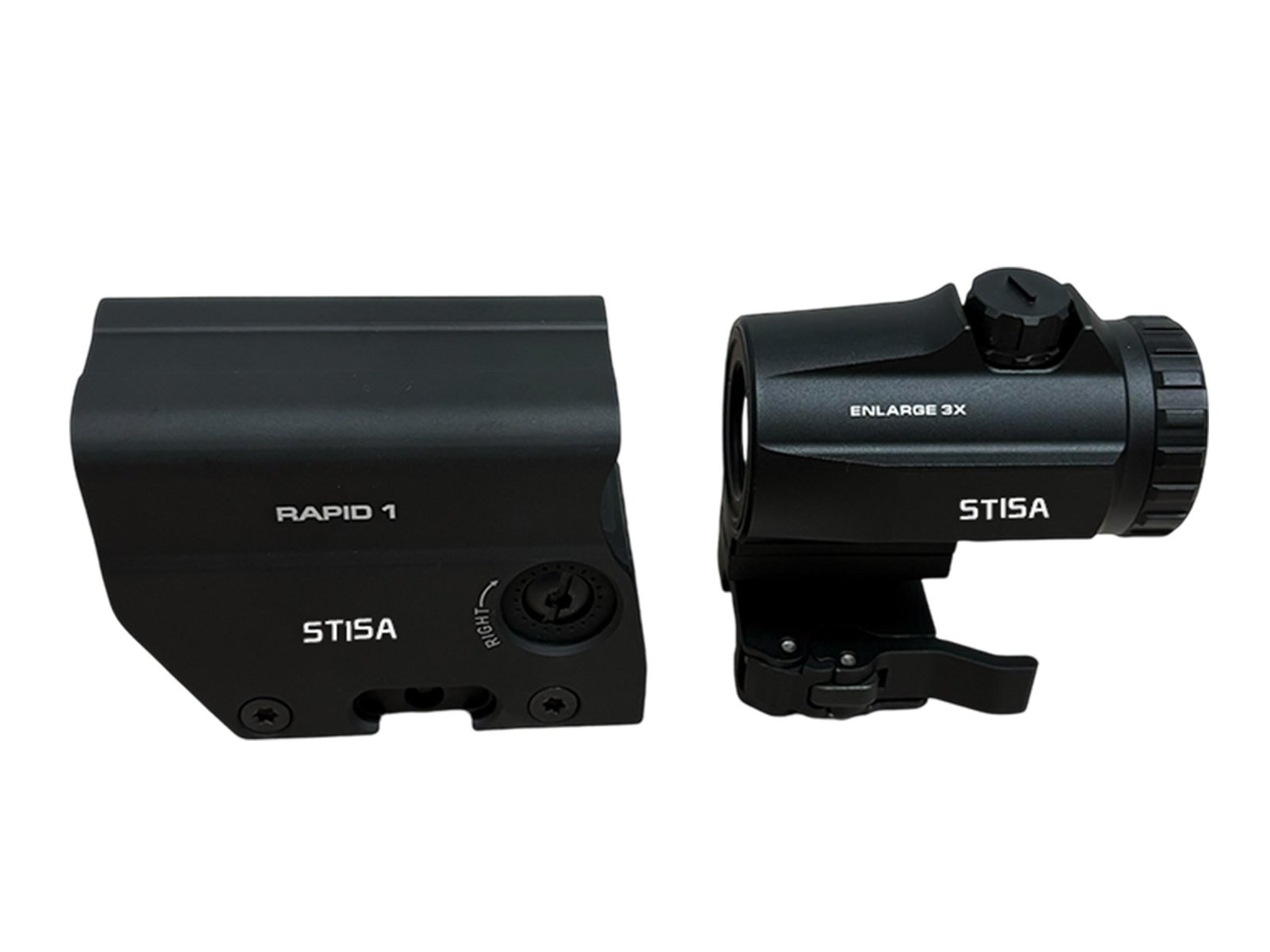

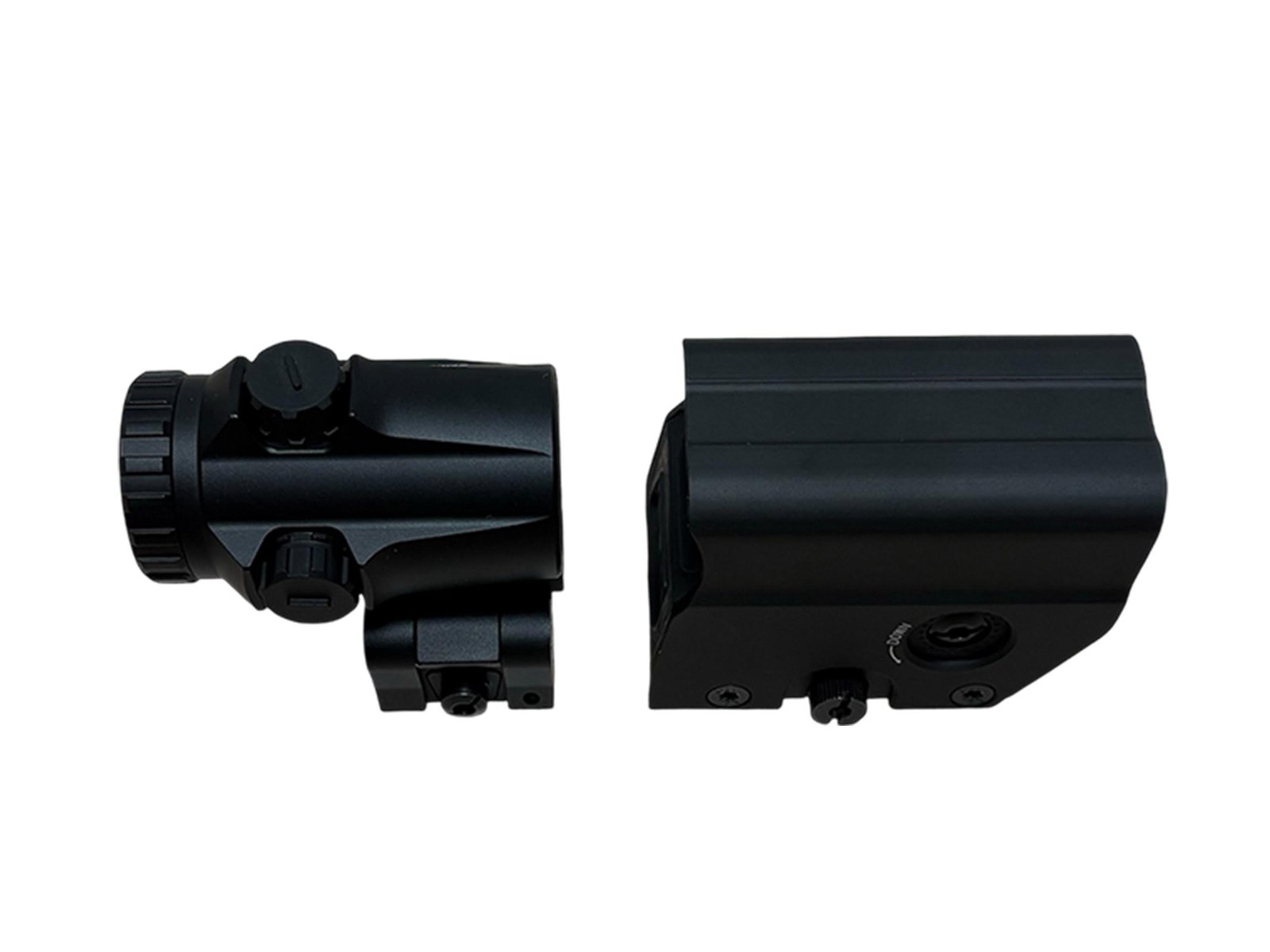

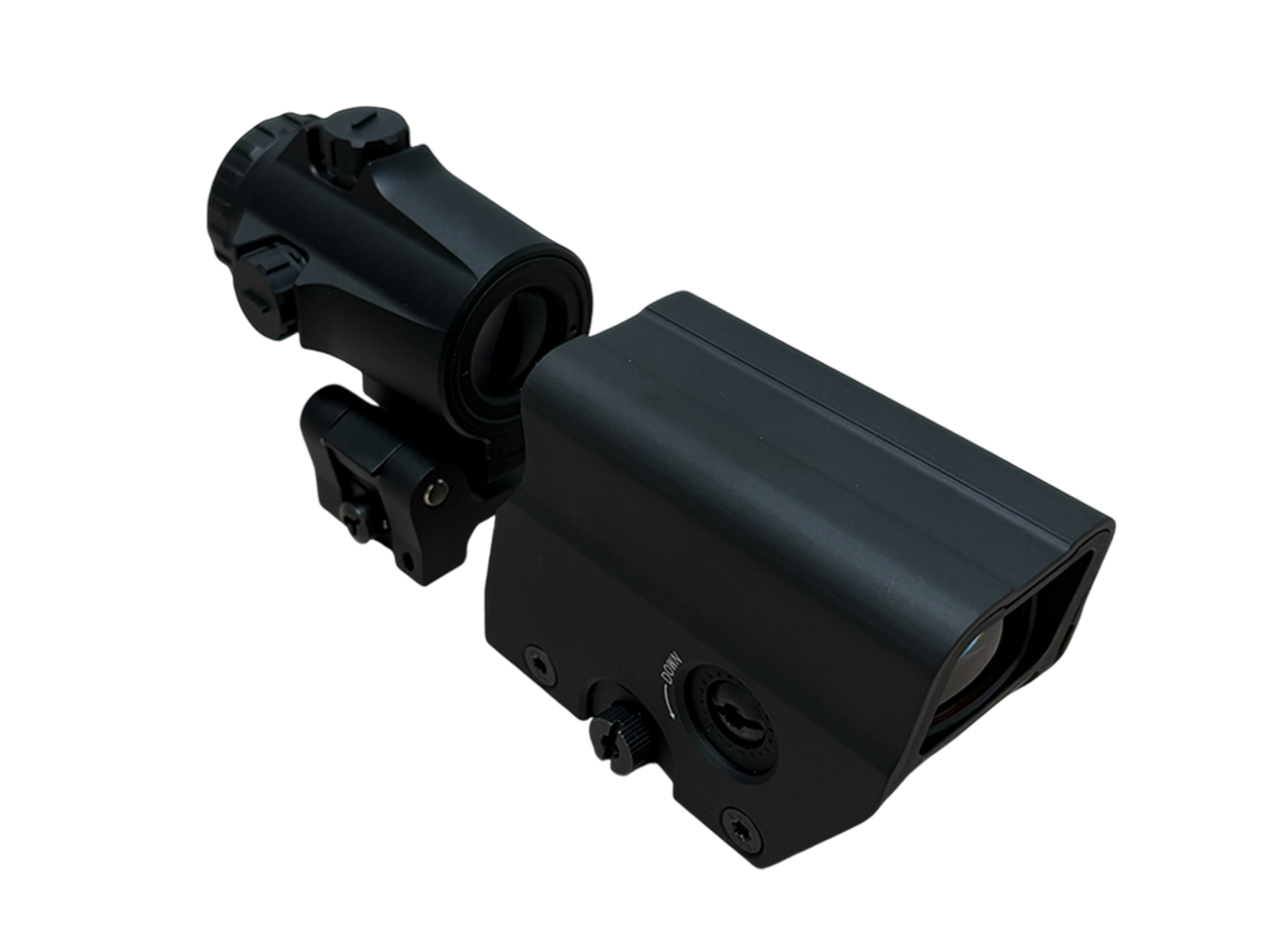

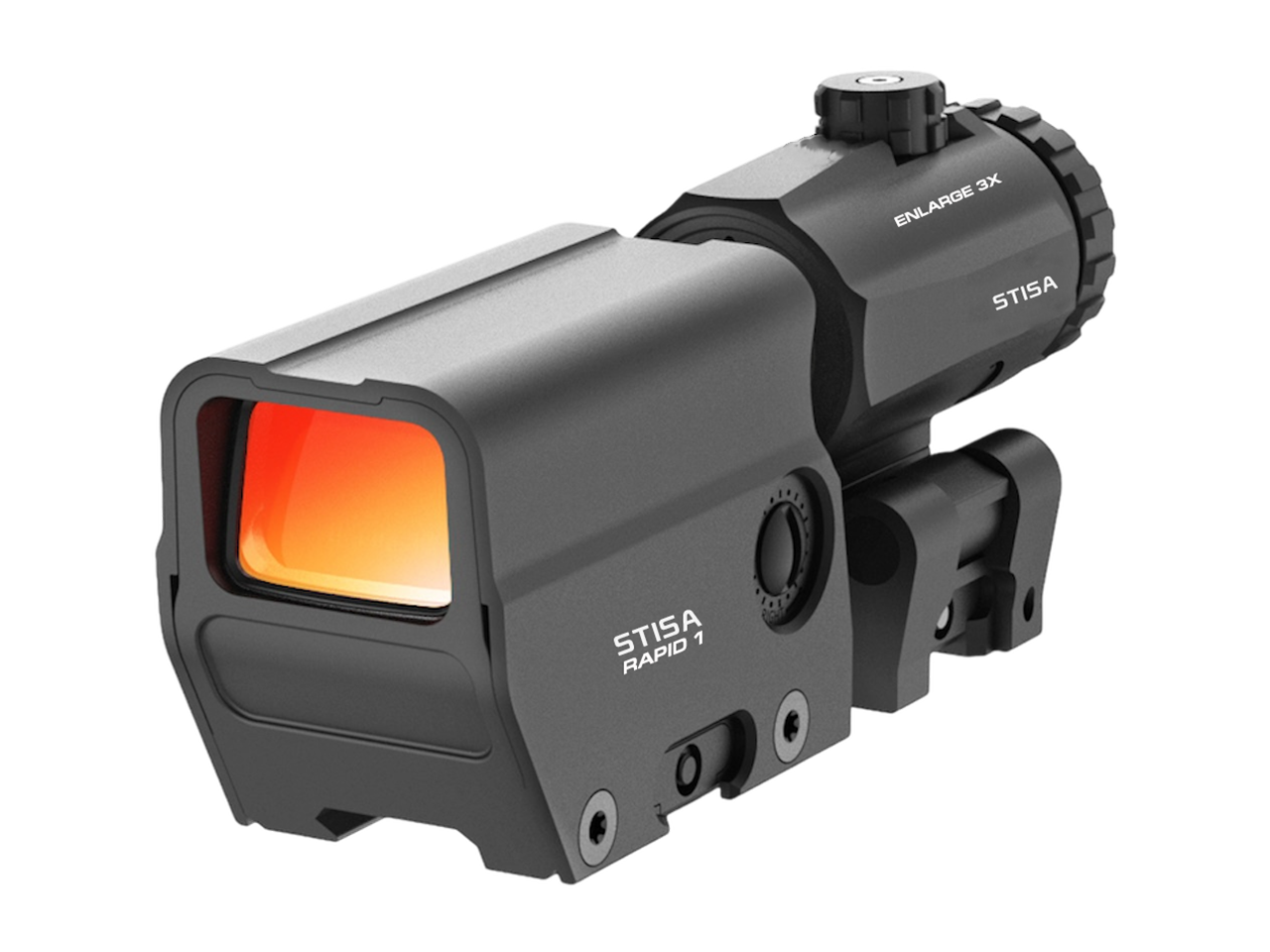

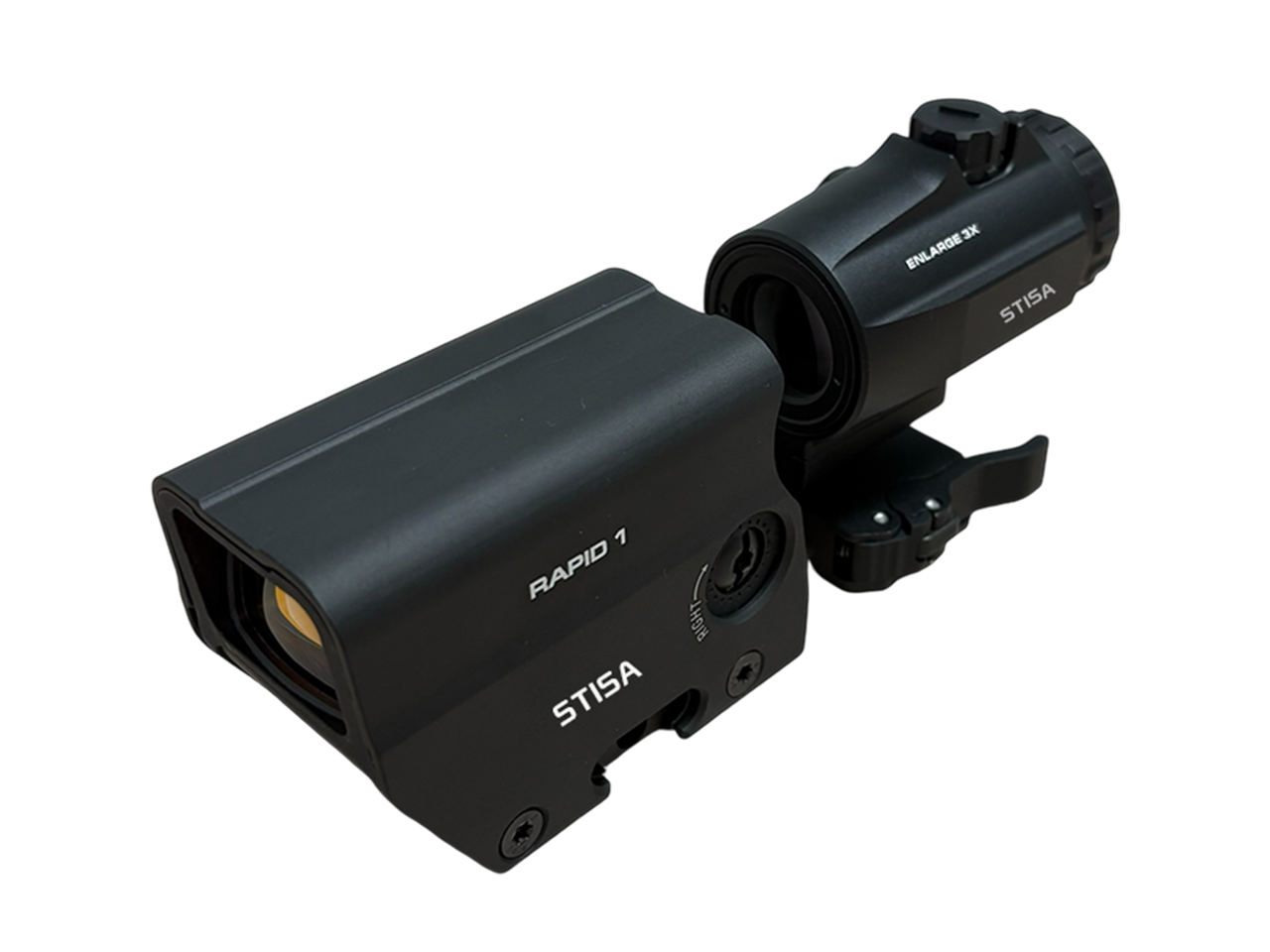

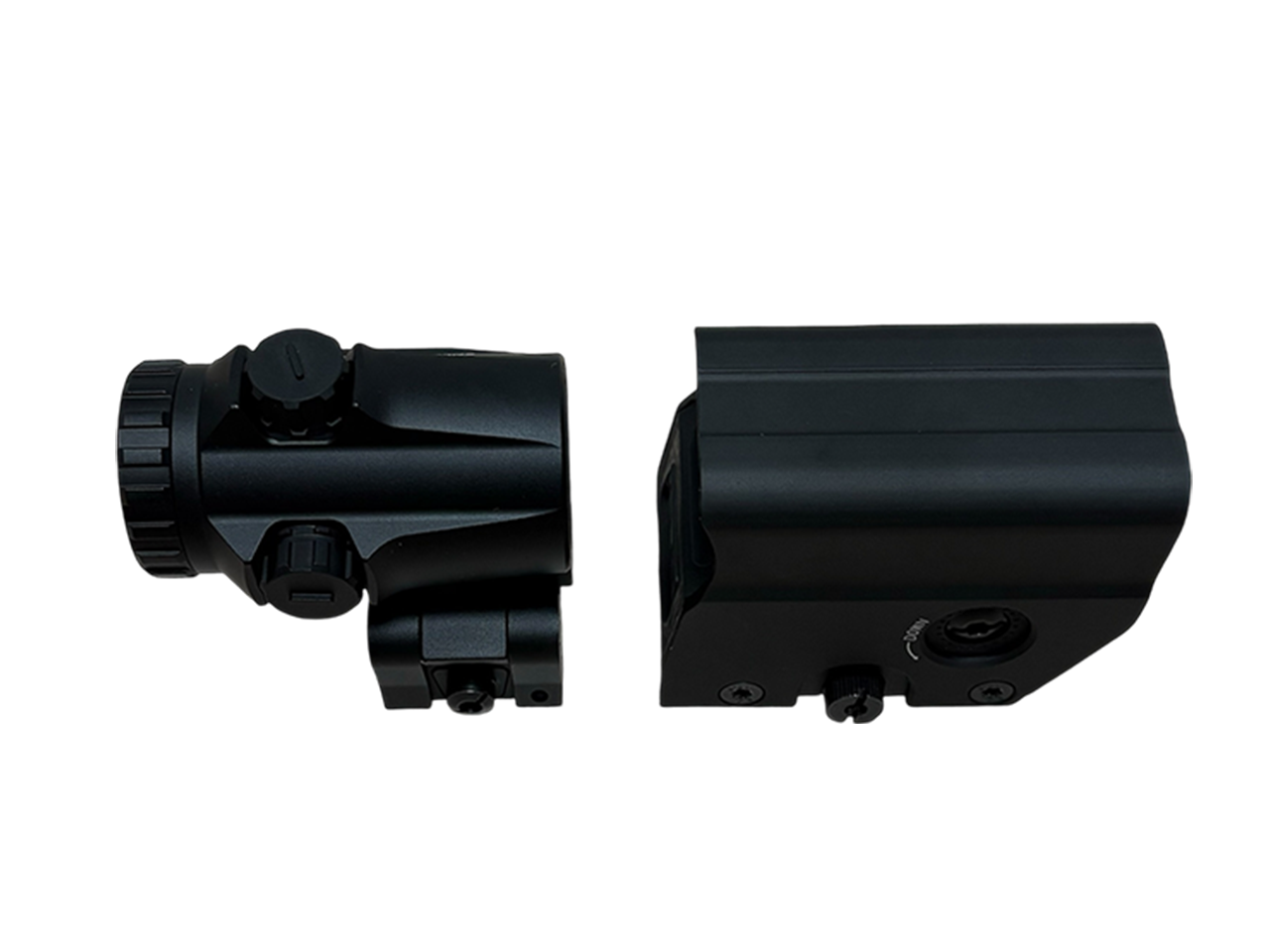

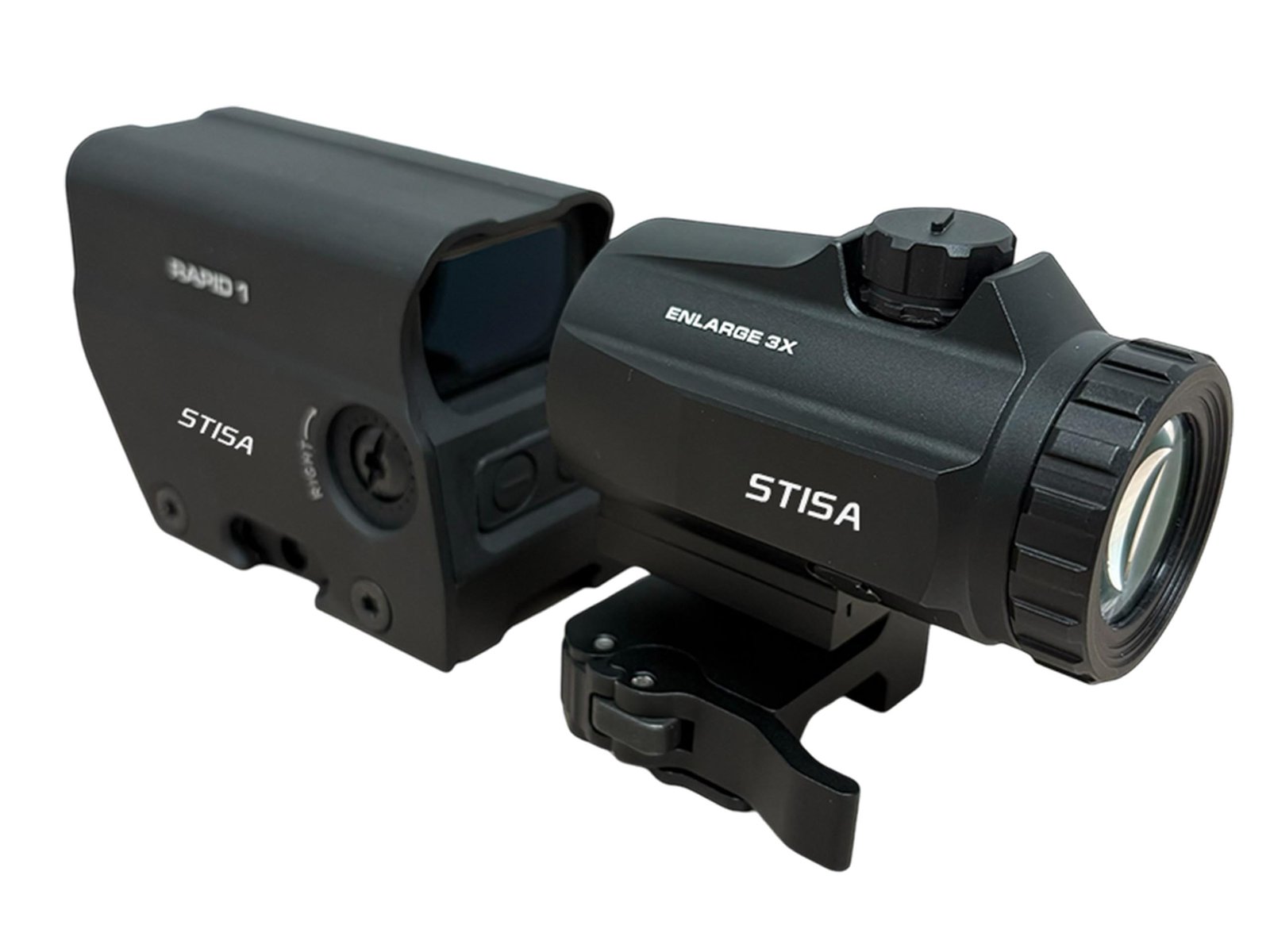

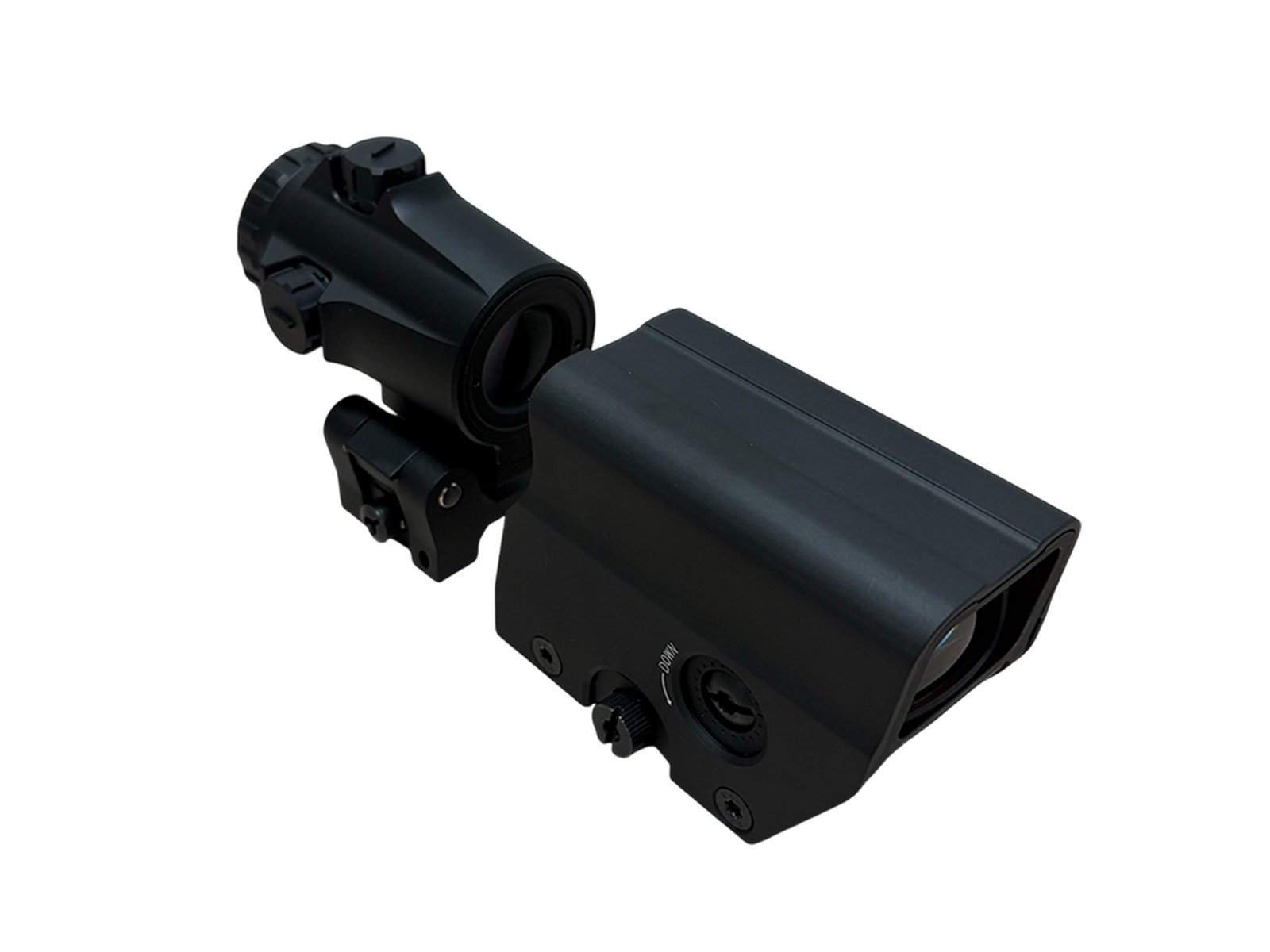

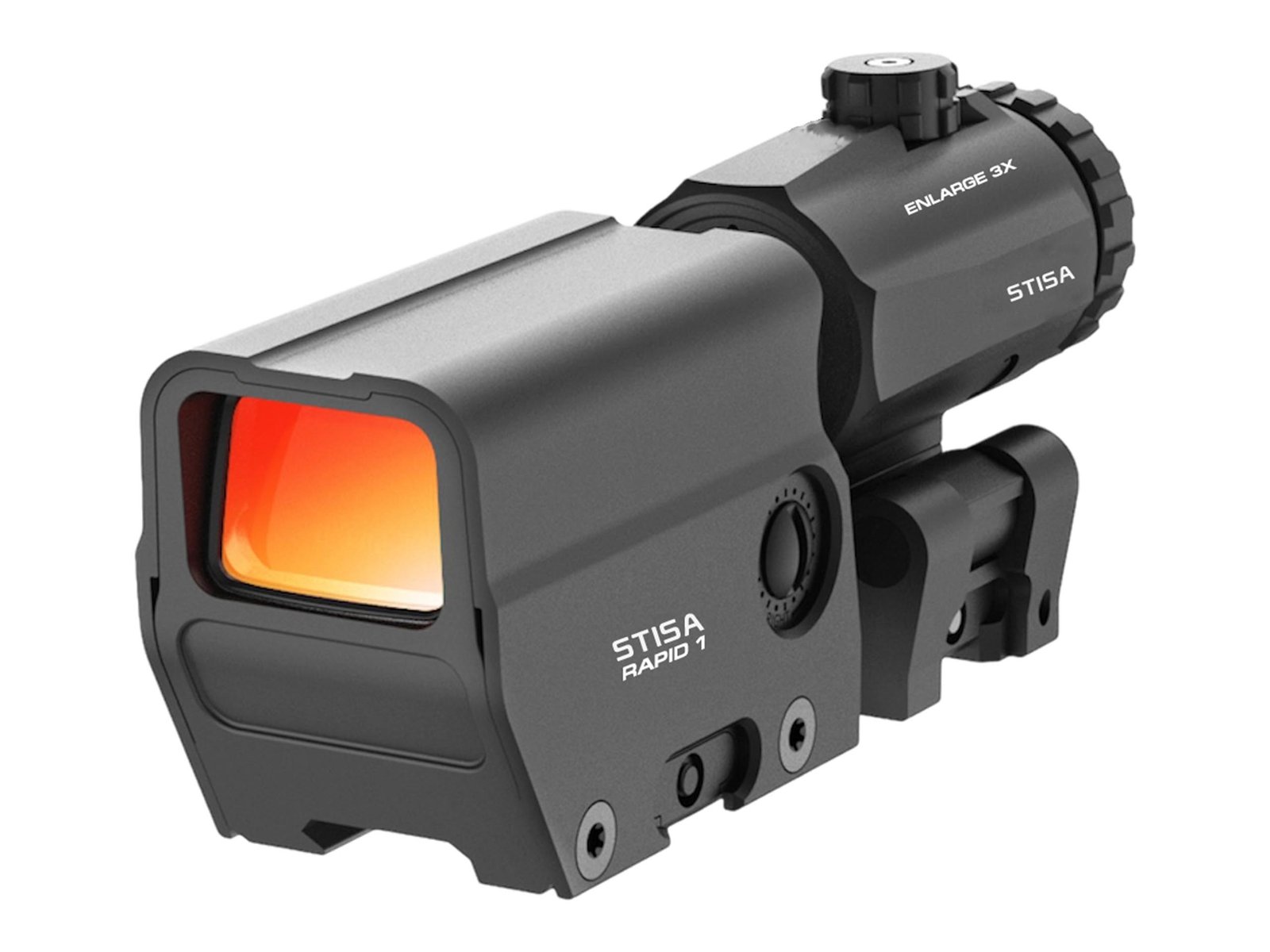

STISA Optics Magnifiers Red Dot Combination Set ENLARGE 3X + PAPID 1
$799.00

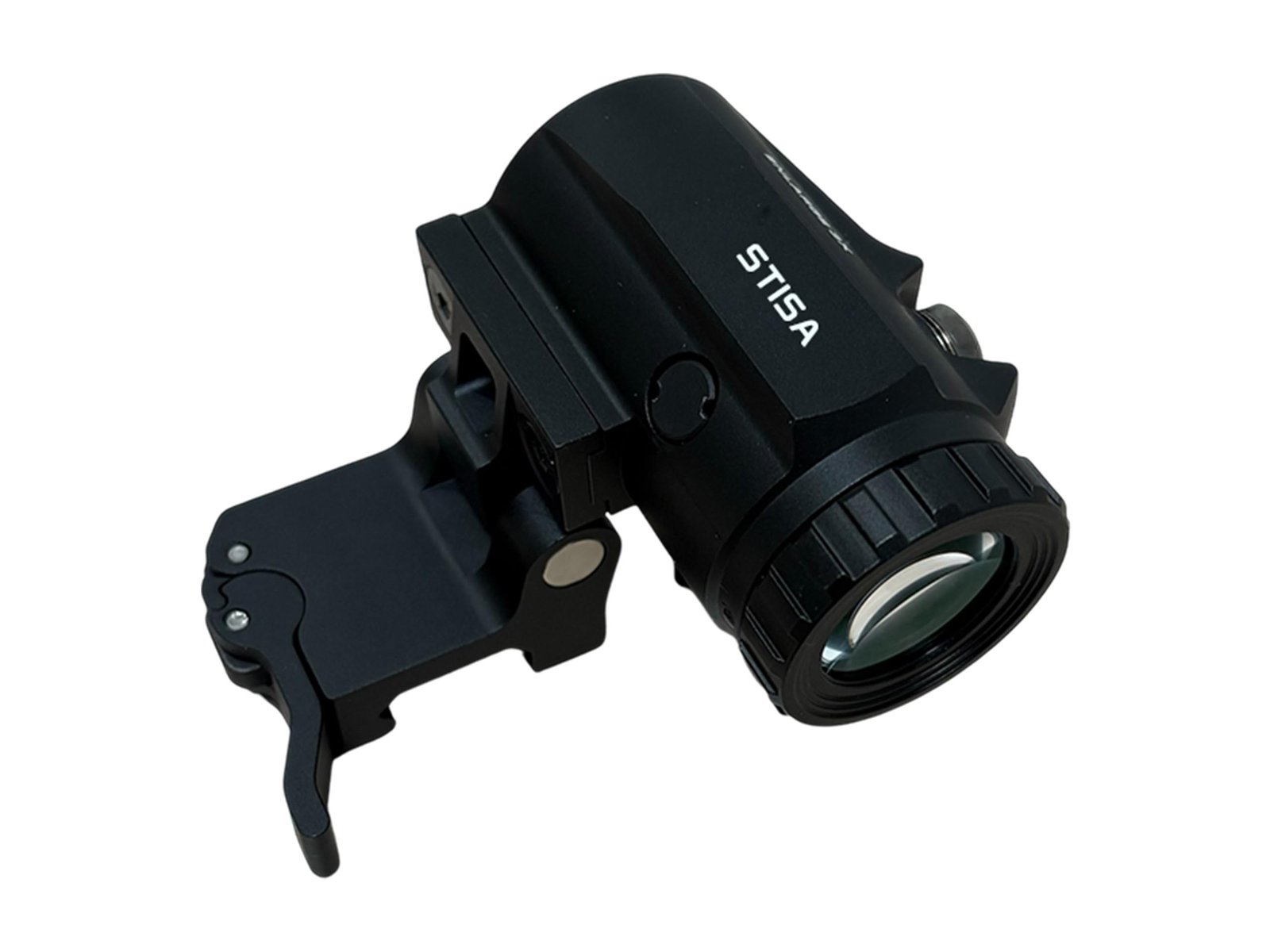

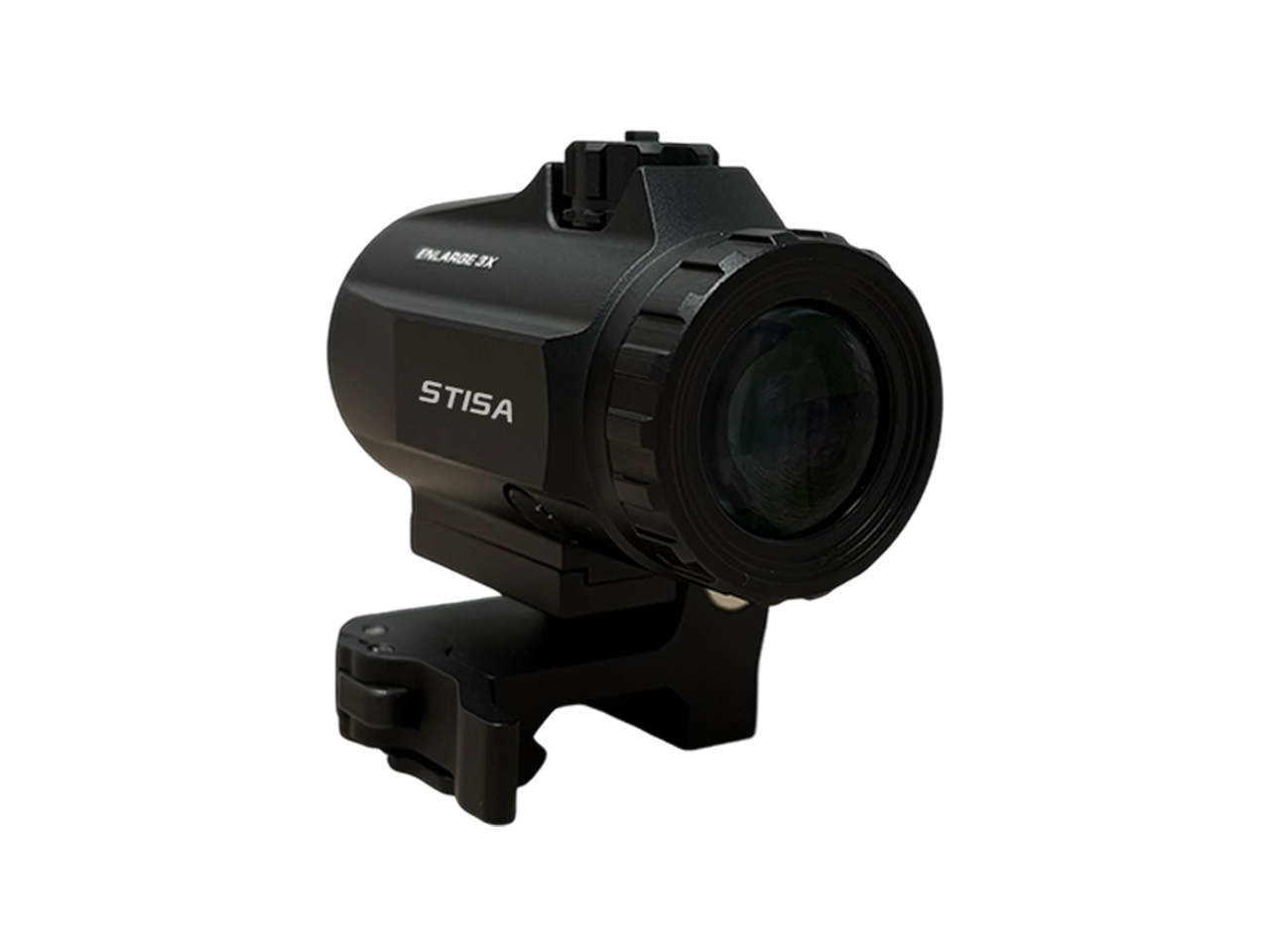

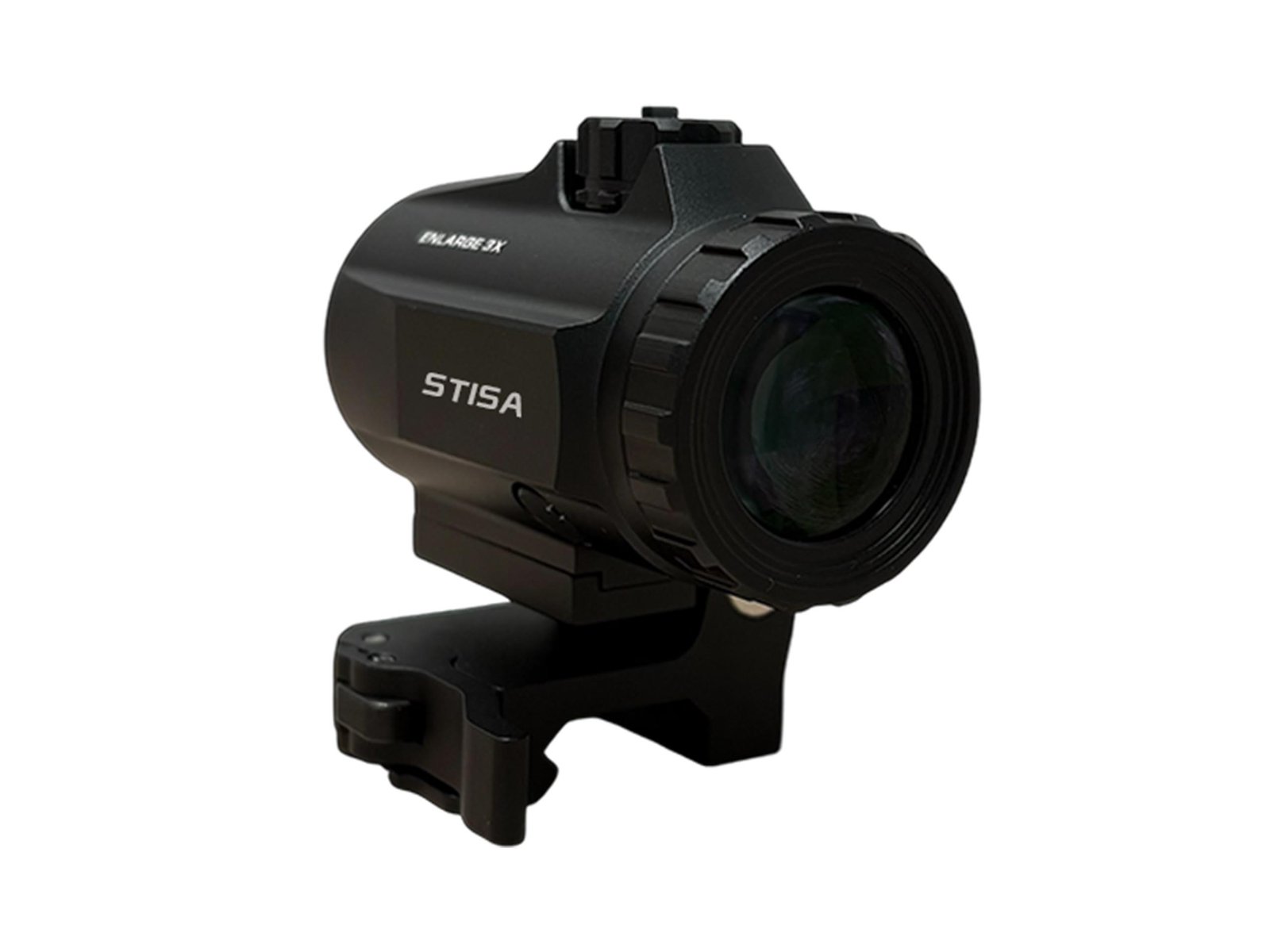

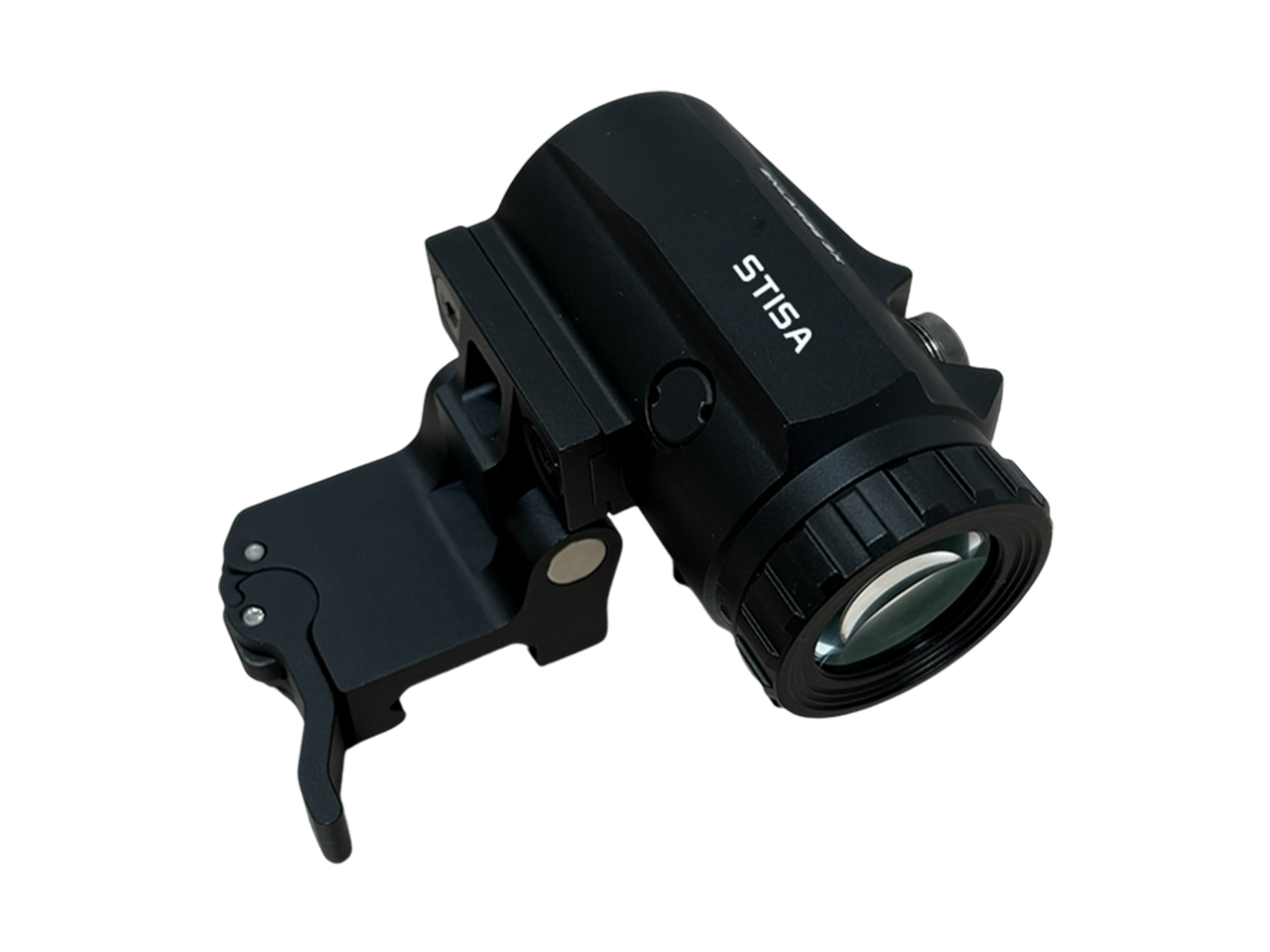

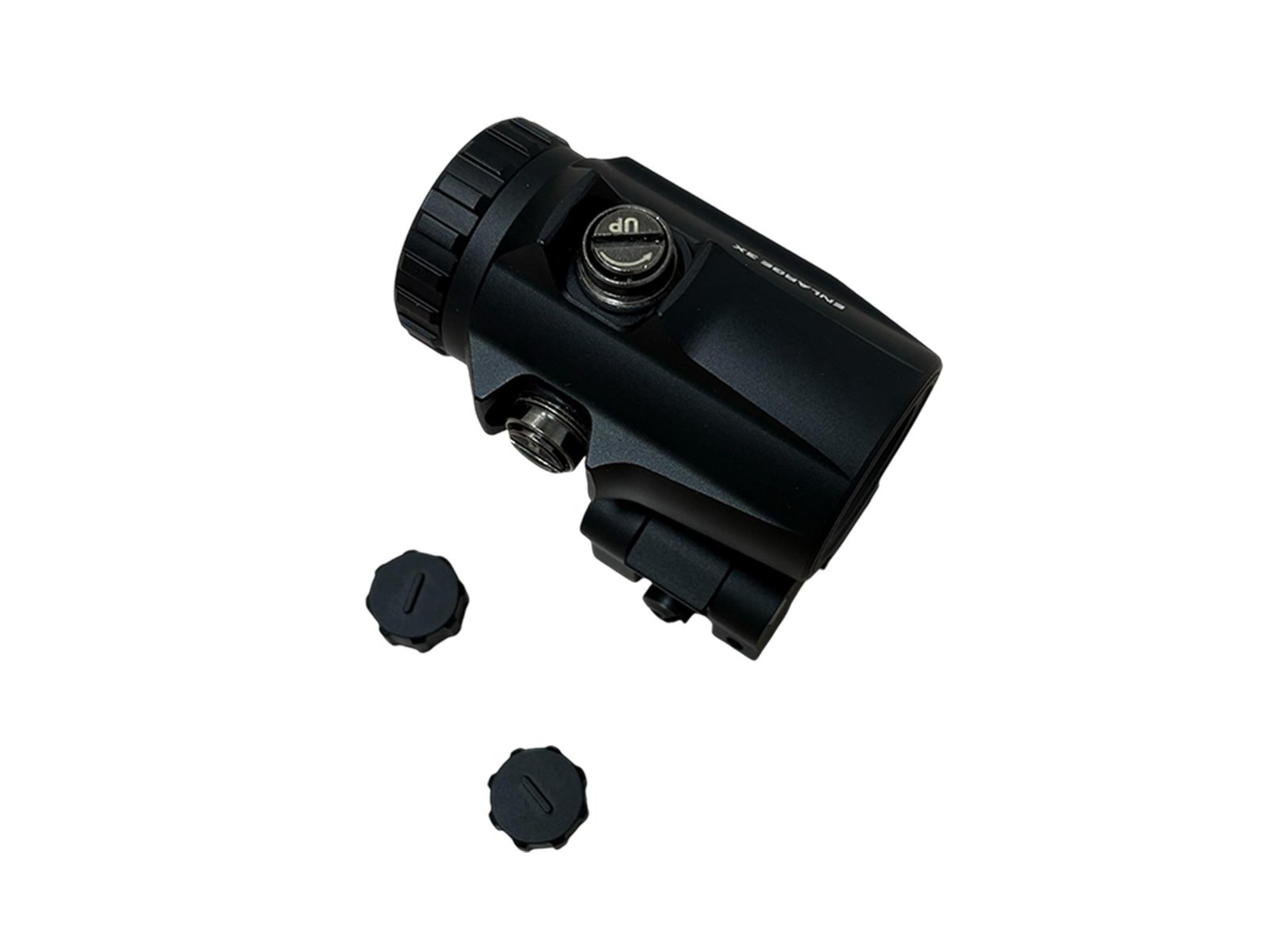

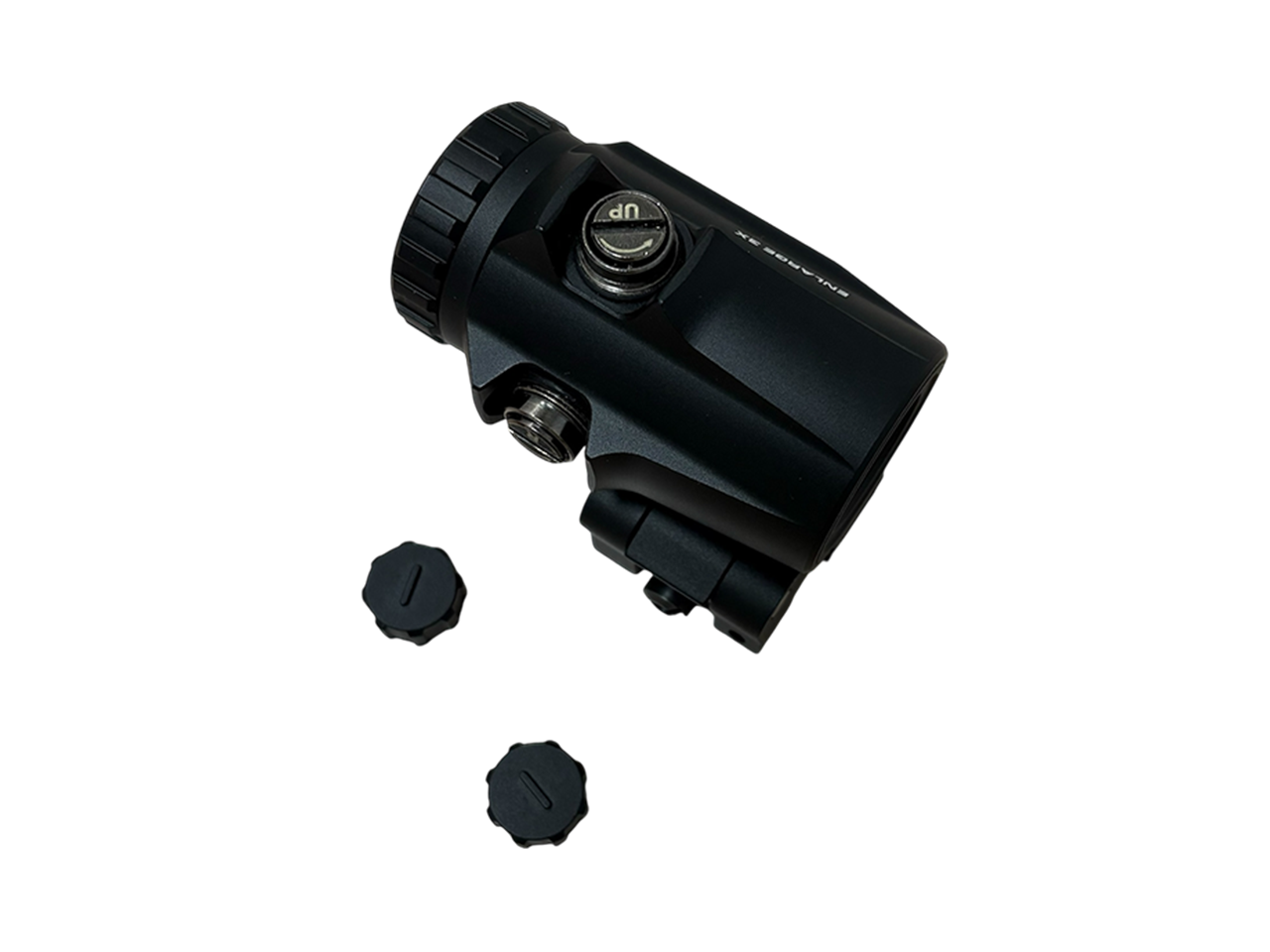

ENLARGE 3X is equipped with 3× magnification, adding versatility to all STISA optical products. Its high-quality lenses provide a clear field of view and optimal eye relief.
Download “STISA-Optics-Magnifiers-Red-Dot-Combination-Set-ENLARGE-3X-PAPID-1.pdf” STISA-Optics-Magnifiers-Red-Dot-Combination-Set-ENLARGE-3X-PAPID-1.pdf – Downloaded 1280 times – 323.57 KBTechnical Specifications
Detailed parameters
Magnification: 3X
Exit Pupil Distance: 2.75 inches (69.85 mm)
Length: 3 inches (76.2 mm)
Height: 3 inches (76.2 mm)
Weight: 10.25 ounces (290 grams)
Impact Resistance: 1000G
Waterproof Rating: IP67
Body Coating: Matte black
Glass Coating: Multi-layer coated lens

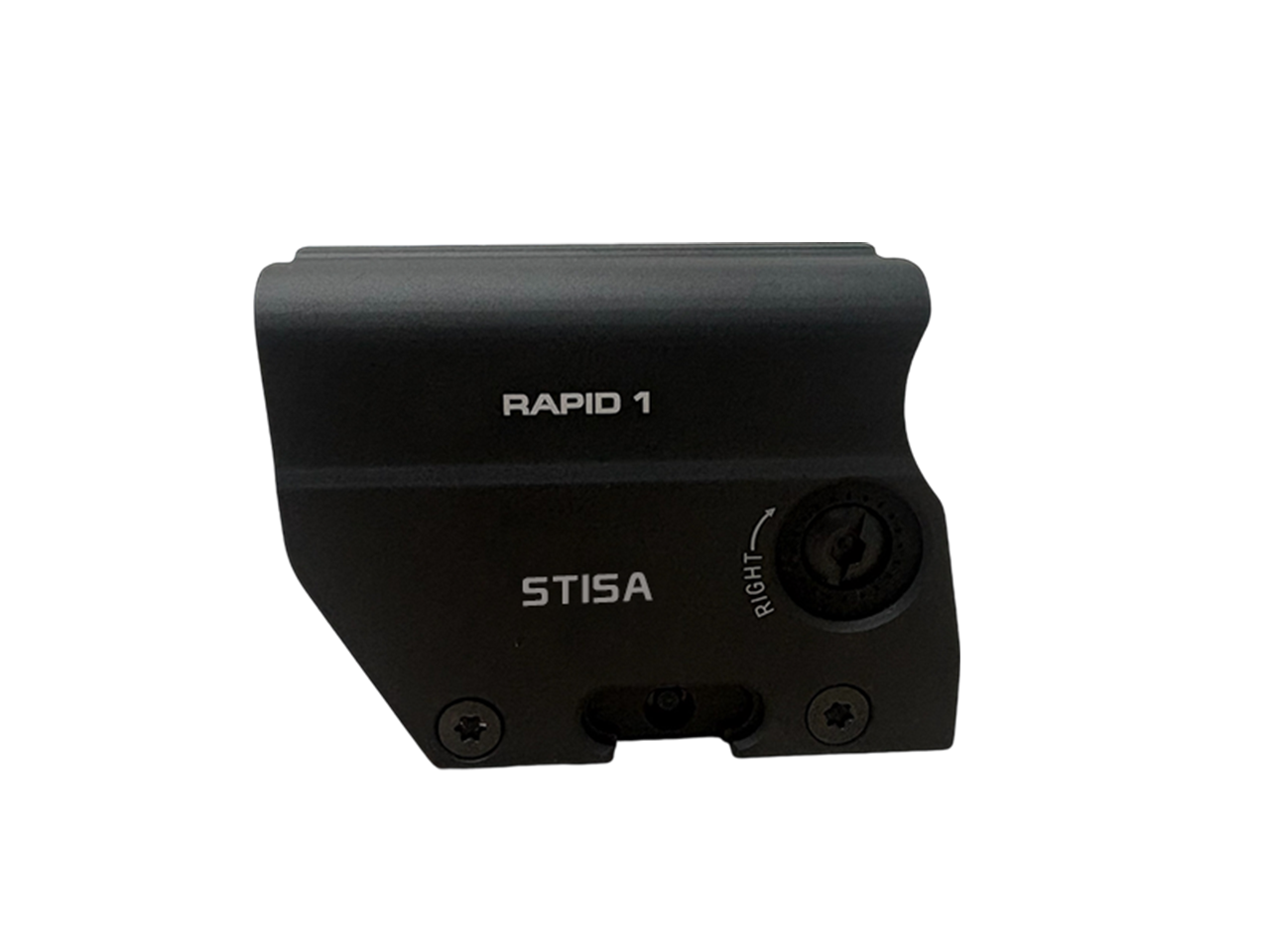

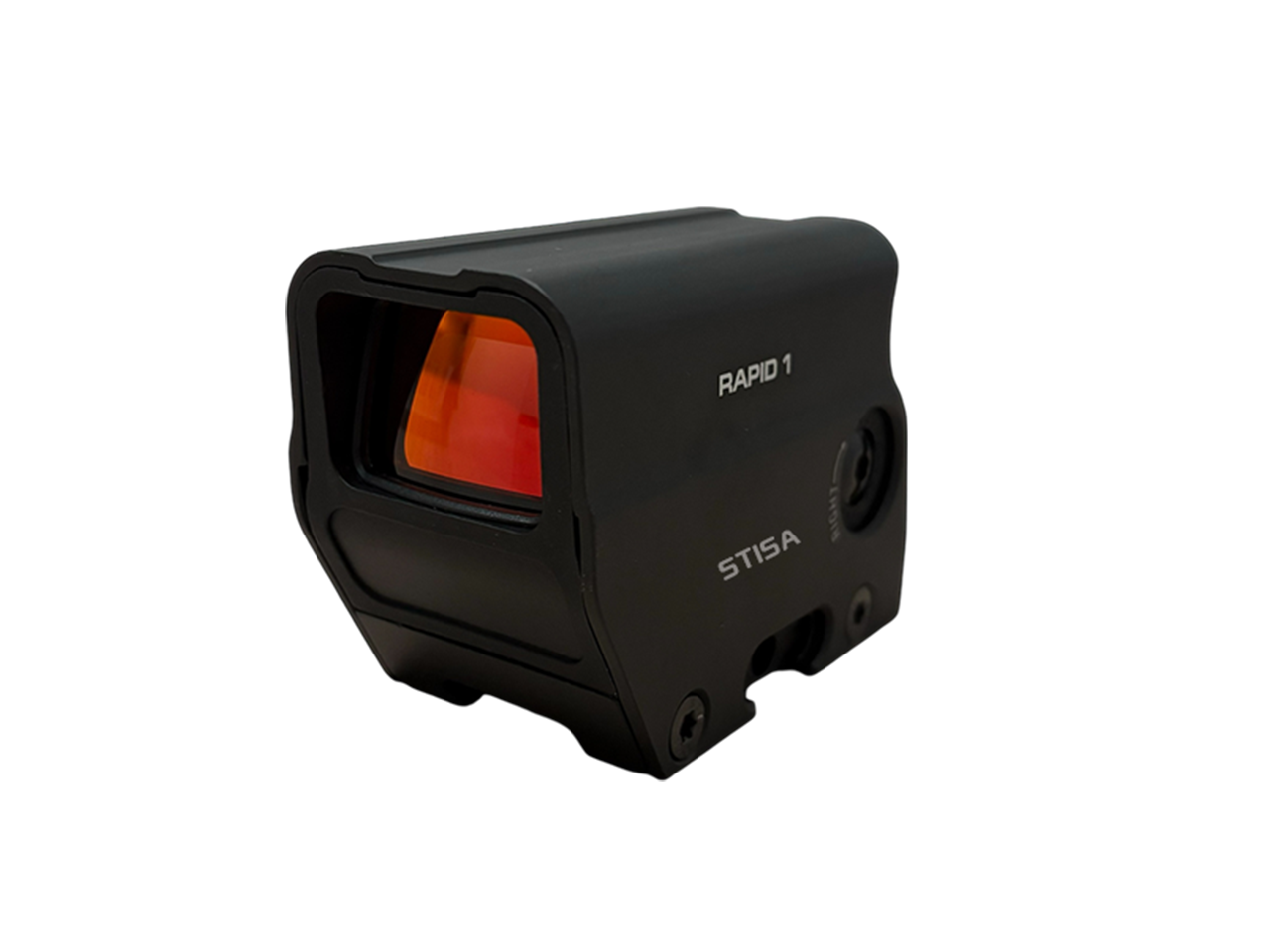

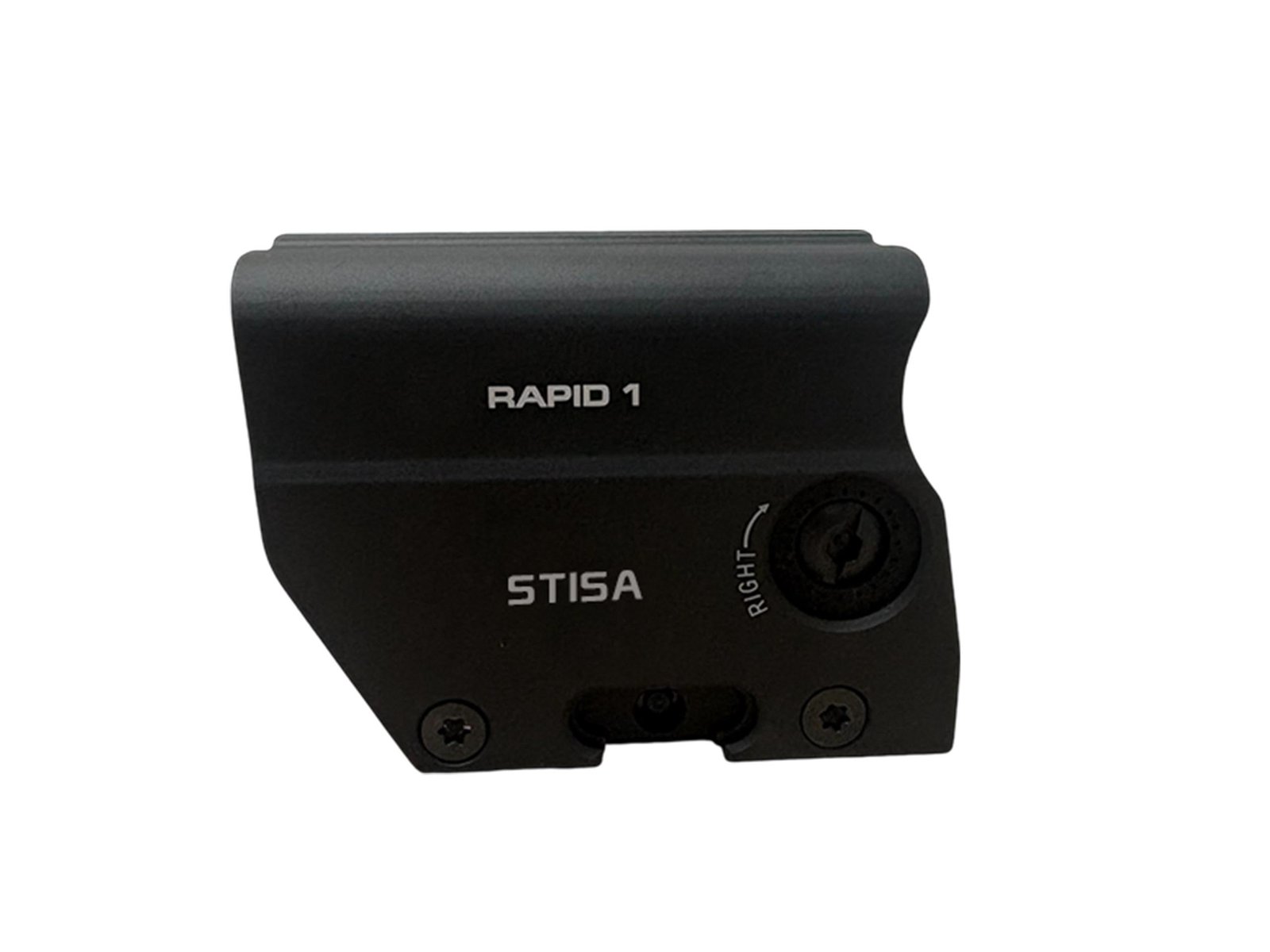

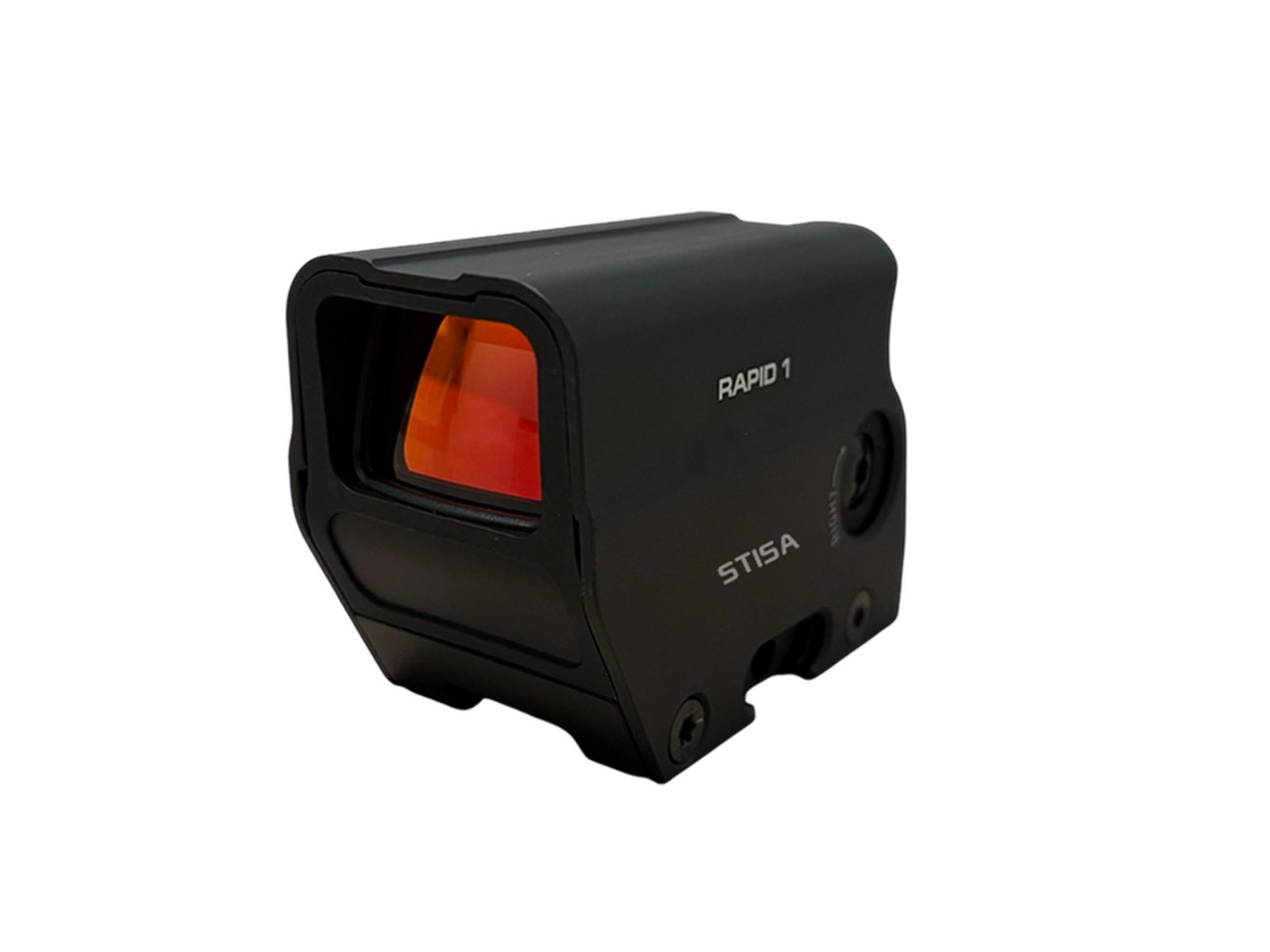

Detailed Parameters
Magnification (Stated): 1X
Exit Pupil Diameter: 22 mm
Parallax Setting: 100 yards / 1′
Click Value (Per Click): 1/2 MOA
Dot Size: 2 MOA
Windage/Elevation Adjustment Range (Up/Down): >140 MOA
Windage/Elevation Adjustment Range (Left/Right): >140 MOA
Brightness Settings: 2 (Night Vision) + 10 (Daylight)
Shake Awake: Yes
Housing Material: Aircraft-grade aluminum (6061-T6)
Battery Life:
Up to 400 hours on highest brightness
Up to 50,000 hours on lower settings
Waterproof Rating: IP67
Shock Resistance: 1200G
Operating Temperature: -30°C to +60°C (-86°F to +140°F)
