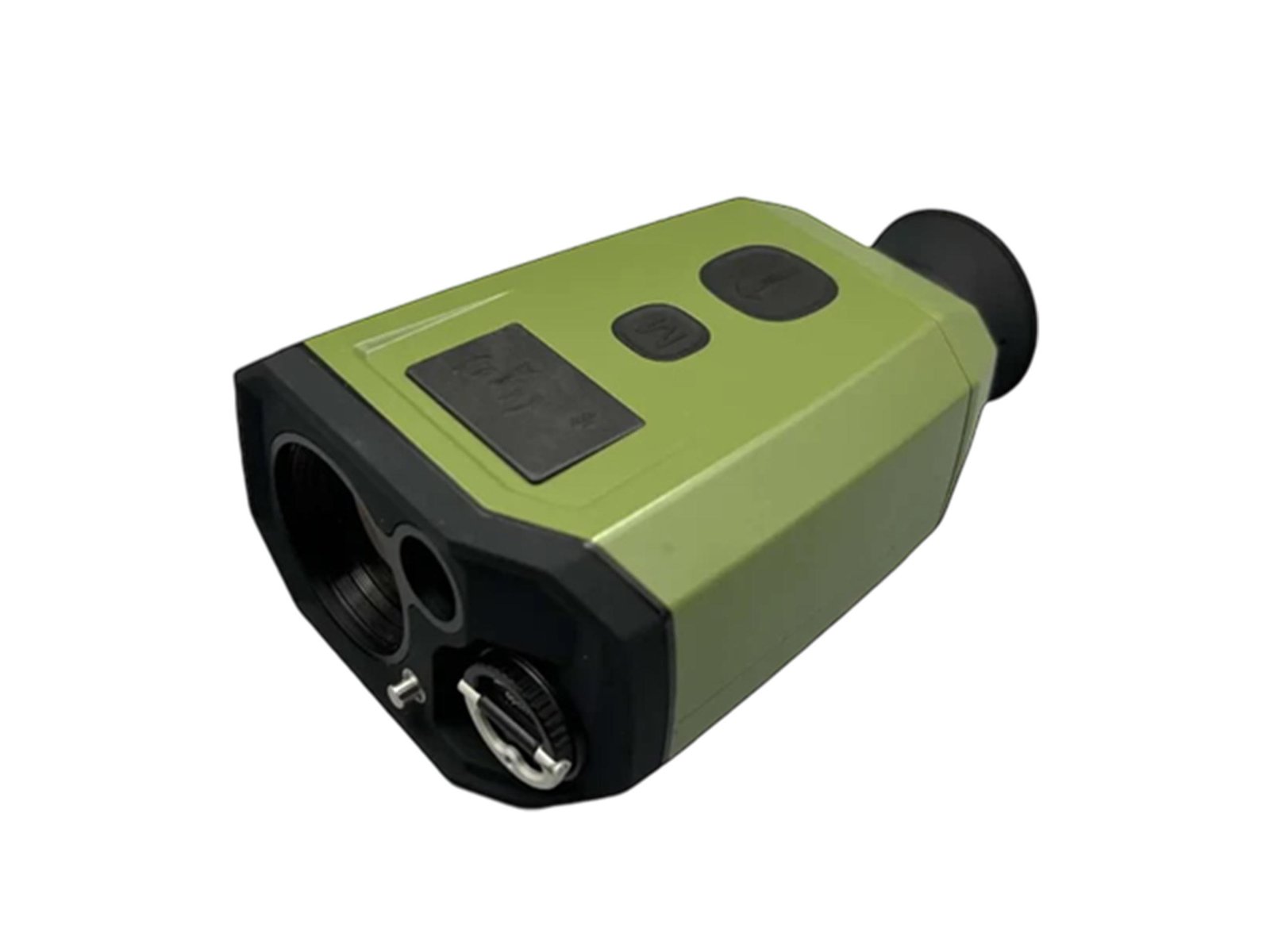

Stisa Optics Handheld Laser Rangefinder Telescope – 10,000m
$19,980.00
The STISA K10000M Laser Rangefinder Binoculars are developed based on a proprietary 1535nm erbium glass laser. Compliant with Class I eye safety standards, this device offers a wide range of functions including distance measurement, angle measurement, altimeter, two-point distance measurement, target positioning, ballistic calculation, Bluetooth connectivity, mobile app support, OLED projection display, GPS positioning, and data transmission.
Designed primarily for one-handed operation, it can also be mounted on a tripod for long-range target measurements. Additionally, its compact and lightweight construction allows it to easily fit into a pocket.
Key Features
Distance Measurement
Provides accurate long-range distance measurement, making it ideal for hunting, shooting, and outdoor exploration.
Angle Measurement
Equipped with angle measurement capability to calculate the incline relative to the target—especially useful in complex terrains.
Altimeter
Offers precise altitude data for targets, making it well-suited for mountaineering, construction surveying, and vertical measurement tasks.
Two-Point Distance Measurement
Allows measurement between two separate targets, enabling precise positioning and spatial calculations.
GPS Target Positioning
Built-in GPS enables accurate target location marking and supports outdoor navigation—particularly valuable in challenging environments.
Ballistic Calculation
Includes ballistic trajectory prediction based on real-time measurement data—ideal for hunting and military applications.
Technology Specifications
Overview
The Stisa S10000M Laser Rangefinder Binoculars integrate distance measurement, angle detection, GPS positioning, and ballistic calculation into one powerful and compact device. Lightweight and portable, it is the ideal choice for outdoor surveying, target acquisition, hunting, and other field activities.
Detailed Specifications
Model: S10000M
Eye Safety Classification: Class 1 (IEC 60825-1)
Magnification: 7×
Field of View: 6° / 106 mil
Eye Relief: 20 mm
Objective Lens Diameter: Φ32 mm
Diopter Adjustment: -5 to +5 D
Laser Wavelength: 1535 nm
Distance Range (Buildings): ≥ 20 to 10,000 m
Distance Accuracy: ±1 m
Measurement Frequency: 1 Hz (3 Hz in continuous mode)
Measurement Accuracy: ≥98%
Beam Divergence: 0.6 mrad
Angle Measurement Range:
Azimuth: 0–360° (±1°)
Elevation: ±90° (±1°)
Power Supply: DC 5–12V
Battery Type: Rechargeable 16340 ×2 / CR123A ×2
Battery Life (at Room Temperature): Up to 5000 measurements
Weight: ≤430 g (including batteries)

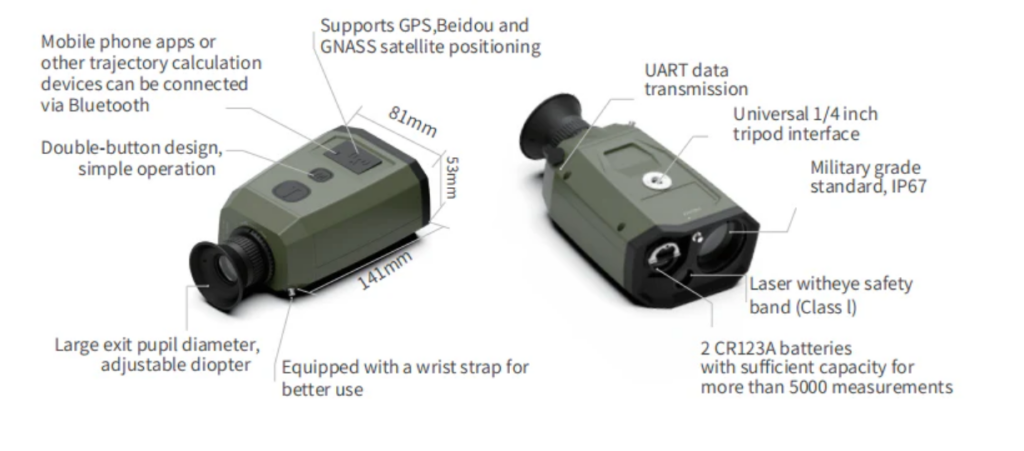

Dimensions: 141 × 81 × 53 mm (L × W × H)
Operating Temperature: -40°C to +55°C
Storage Temperature: -50°C to +65°C
Waterproof Rating: IP67

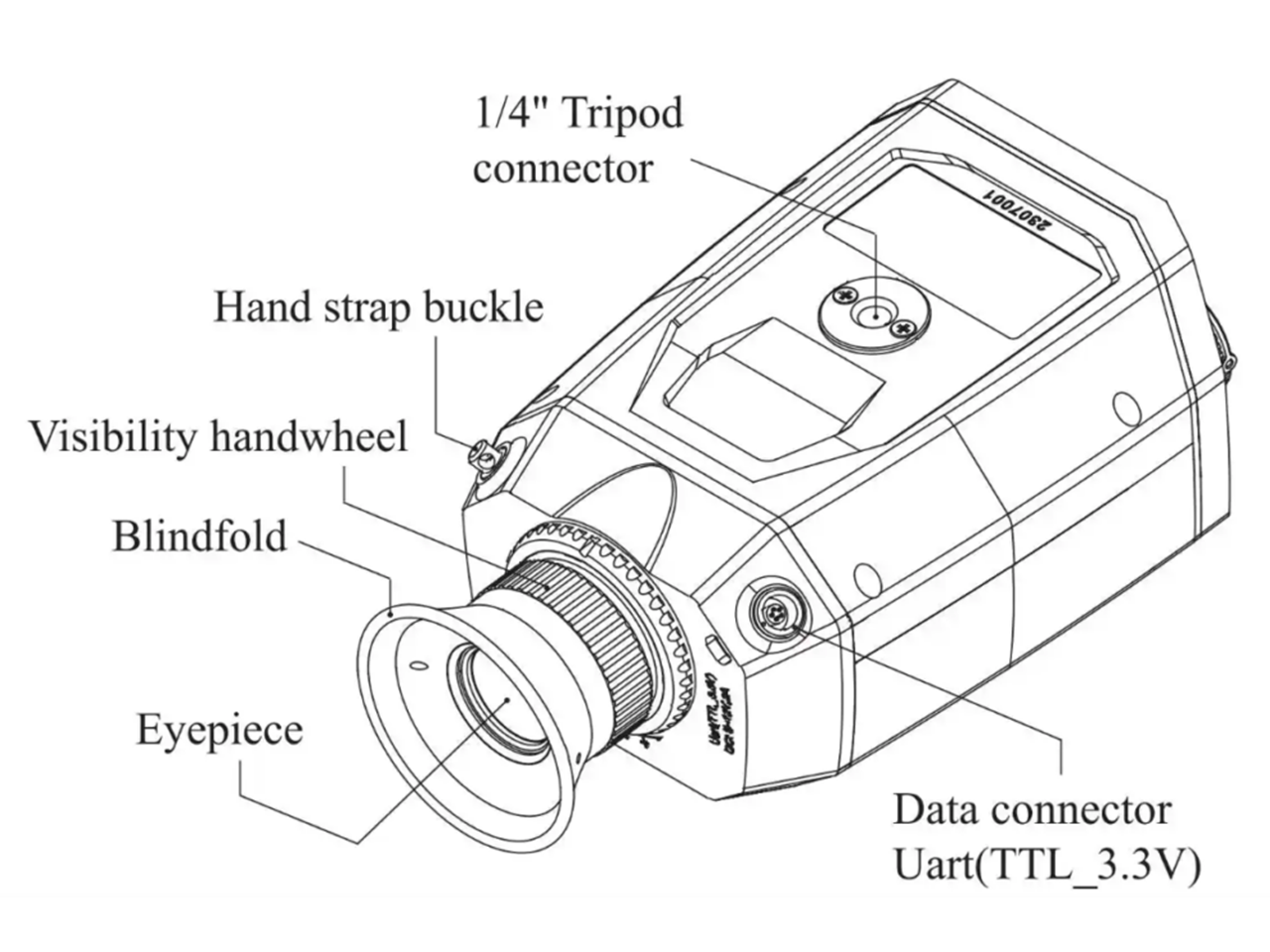

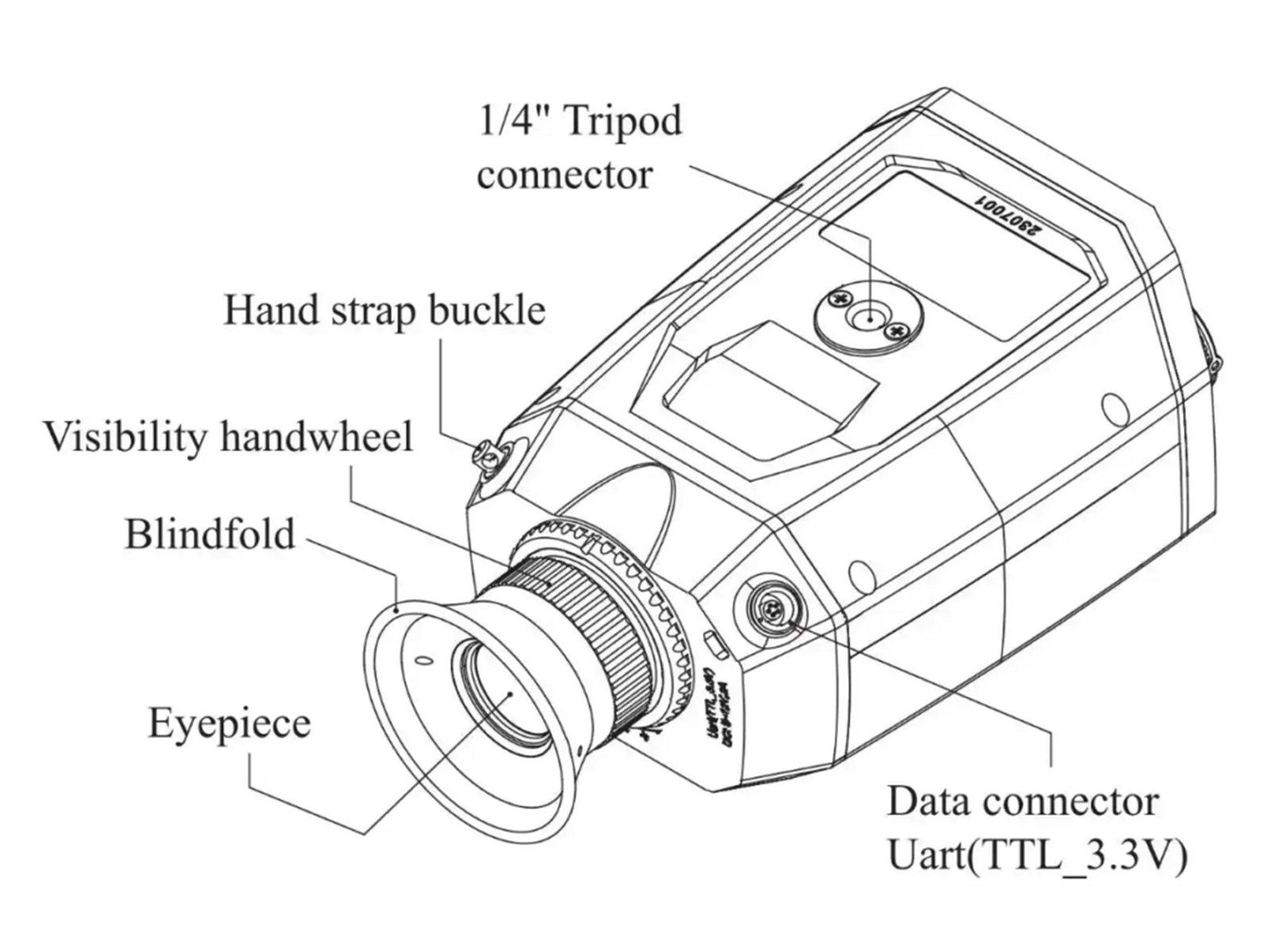

Interface: UART (TTL_3.3V) to USB
Wireless Connectivity: Bluetooth 5.0
Positioning Systems: GPS / BeiDou / GLONASS
Positioning Accuracy: ≥50 m
Additional Features: Mobile App Connectivity
Certifications: CE, RoHS
